Product Details
Place of Origin: China
Brand Name: Esun
Certification: RoHs, REACH
Payment & Shipping Terms
Minimum Order Quantity: 25kg
Price: USD 3-3.5 per kg
Packaging Details: 25kg per bag
Delivery Time: Shipped in 3-5 days after receive payment
Payment Terms: T/T
Supply Ability: 7000kg per day
Product Name: |
EVA Hot Melt Adhesive Film |
Material: |
EAA(Ethylene Acrylic Acid Copolymer)/TPU |
Feature: |
Water Proof/Strong Adhesion |
Thickness: |
0.06mm-0.20mm |
Width: |
Normally 47cm/48cm |
Heat Press Temperature: |
130-170°C |
Product Name: |
EVA Hot Melt Adhesive Film |
Material: |
EAA(Ethylene Acrylic Acid Copolymer)/TPU |
Feature: |
Water Proof/Strong Adhesion |
Thickness: |
0.06mm-0.20mm |
Width: |
Normally 47cm/48cm |
Heat Press Temperature: |
130-170°C |

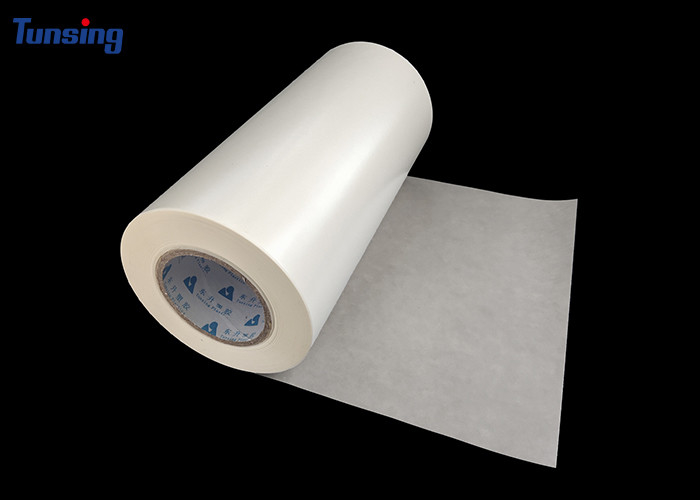

Quick detail of EVA Hot Melt Adhesive Film
Main Raw Material: EVA (Ethylene Vinyl Acetate)
Usage: Fiber & Garment, Footwear & Leather, Foam and Film Lamination
Model Number: V3108
Thickness: 0.06-0.20mm
Width: normally 47cm48cm in stock
Length: 100yards
Type: Hot-melt adhesive, Hot-melt adhesive lamination film
Description of EVA Hot Melt Adhesive Film
Hot Melt Adhesive Film has two parts: the Film part and the Release Paper part on its back. The Film part is not adhesive under the normal temperature. When it reaches its melting point, the Film part has strong adhesion so that the two materials can be adhered to each other permanently and firmly with the technology of heat press by using the hot press machine.
EVA Hot Melt Adhesive Film is a repeatedly thermoplastic adhesive, which is suitable for a variety of uses, This adhesive works greatly for Fabric, leather, metal (copper, aluminum, iron, stainless steel, etc.), plastic (ABS, PC, PVC, etc.), textiles, wood etc
Specification of EVA Hot Melt Adhesive Film
| Product Type: | Hot Melt Adhesive Film |
| Material: | EAA(Ethylene acrylic acid copolymer)/TPU |
| Technics: | Blowing Mould |
| Color: | White |
| Feature: | Water Proof/Strong Adhesion |
| Thickness: | 0.06mm-0.20mm |
| Width: | Normally 47cm/48cm |
| Heat Press Temperature: | 130-170°C |
| Color | translucent white | Release Liner | Glassine release paper |
| Density | 0.93±0.02g/cm³ | Thickness | 0.05mm,0.08mm,0.10mm,0.12mm,0.15mm |
| Melt Point(DSC) | 70-80℃ | Width | 1000mm,1380mm,1480mm |
| Melt Flow Index | 200±30g/10min Condition: ASTMD1238-04 | Length | 100 yards |
| Operating Temperature | 110-140℃ | Finished Products Specification | 1380mm*100yards/roll |
| Model No. | WD5001 |
| Material | Vinyl resins |
| Color | Amber |
| Specific Gravity | 0.958g/cm3 |
| Release liner | Release paper |
| Tack free time | 12 min |
| Hardness | Stiff |
| Melting point | 60°C |
| Glue Line Temperature | 120°C to180°C |
| Usual thickness | 0.05mm-1mm for choice |
| Melt Flow Index | 100g/10min Condition:190℃/2.16Kg Load |
| Finished products specification | 1370mm*100yard/roll |
Feature of EVA Hot Melt Adhesive Film
(1) Use imported materials, it is environmentally friendly, good weather resistance, good adhesion,good elasticity, good fastness after washing.
(2) make it with precision machine, strong adhesion, it is convenient, and easy to make, suitable for produce in massive.
Application of Hot Melt Adhesive Film
PO Hot Melt Adhesive Film is widely used to glue Embroidery Patches/Badges, Woven Labels to Fabrics; the permanent bonding of Textile Fabrics; the permanent bonding of Metals Materials, such as Aluminum Plates, Metal Plates and Stainess Steel Plates;
TPU Hot Melt Adhesive Film is widely used for the permanent bonding of Seamless Underwear and to glue Elastic Fabrics, such as Cotton Fabrics and Spandex Fabrics.
EVA Hot Melt Adhesive Film Mainly used in lamination of interlining garments, bra cup model, hot transfer, leather, car interior decoration and shoe materials and chemical fiber, silk interlining and non-woven with carpet, felt lamination.
EVA hot melt adhesive film is mainly used for Tablet computer casings, cell phone sets, electronic products, IC encapsulation of adhesive, luggage, tablet case, cell phone and iPad protective cover, sports protective gear, badges, PVC, leather, mouse, keyboard, IC cards, adhesive etc.
1. Composite clothing program: Hot Melt Adhesive Film can be applied to the warm pants, Jackets, underwear, shirts, swim wear and other clothing a number of sub-areas.
2. Complex car interior program: professional research and development of hot-melt adhesives are Applied to roofing, luggage jackets, car carpet assembly and other segments of the market.
3. Shoes composite program: hot melt adhesive film for the upper, insoles, shoes superscript, pads, bags and other sub-areas.
4. Other composite programs: hot melt adhesive film can also be used in the US makeup, home improvement industry, electronic materials, and other fields.
Why Choose Us
1. We are environmentally friendly adhesive enterprises to ensure the environmental performance of raw materials
2. Own factory, efficient technical equipment, a number of production lines
3. Professional R & D team, set production, research and development, sales as one of the new enterprises
4. Service thoughtful, short delivery cycle
FAQ
1. What can you supply? /Q: What are your main products?
A: We can supply TPU Hot Melt Adhesive Film, Hot Melt Adhesive Film For Textile Fabric, EVA Hot Melt Adhesive Film and so on, all kinds of Hot Melt Adhesive Film.
2. Are OEM and ODM available?
A: Yes, they are. As a professional EVA Hot Melt Adhesive Film manufacturer, we offer OEM and ODM service.
3. How about your product warranty?
A: We offer one-year warranty upon delivery.
4. How about the after sales support?
A: We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, Whats App, We Chat and SKYPE.
